Key specifications

Material

Aluminum rails and components, stainless steel bolts & nuts

Max Snow Loads

Can be designed for any snow loads (up to over 100 PSF)

Max Wind Loads

Can be designed for any wind loads (up to 180MPH)

Tilt Angle

5 to 30 (5 deg. increments)

PV Panel Orientation

Landscape or Portrait

Module

Any framed PV, any frameless PV

Ballasted

Up to 100% ballasted

Anchored

Up to 100% anchored

Hydrid (ballasted & Anchored)

Hybrid ballasted and anchored system possible

Dead Loads on roof (Ballasted)

5-10 PSF

Dead Loads on roof (Anchored)

2-3 PSF

PV Panel height from roof

Customizable, 8 to 24 inches

Interrow distance

Customizable, standard at 20 deg. Shading angle

Grounding

Self-bonding PV clamps, UL 2703 listed

Roof Type Compatibility

Any flat roof (built-up roof, TPO, EPDM membranes, asphalt, metal, standing seams).

Wind deflector

Not required

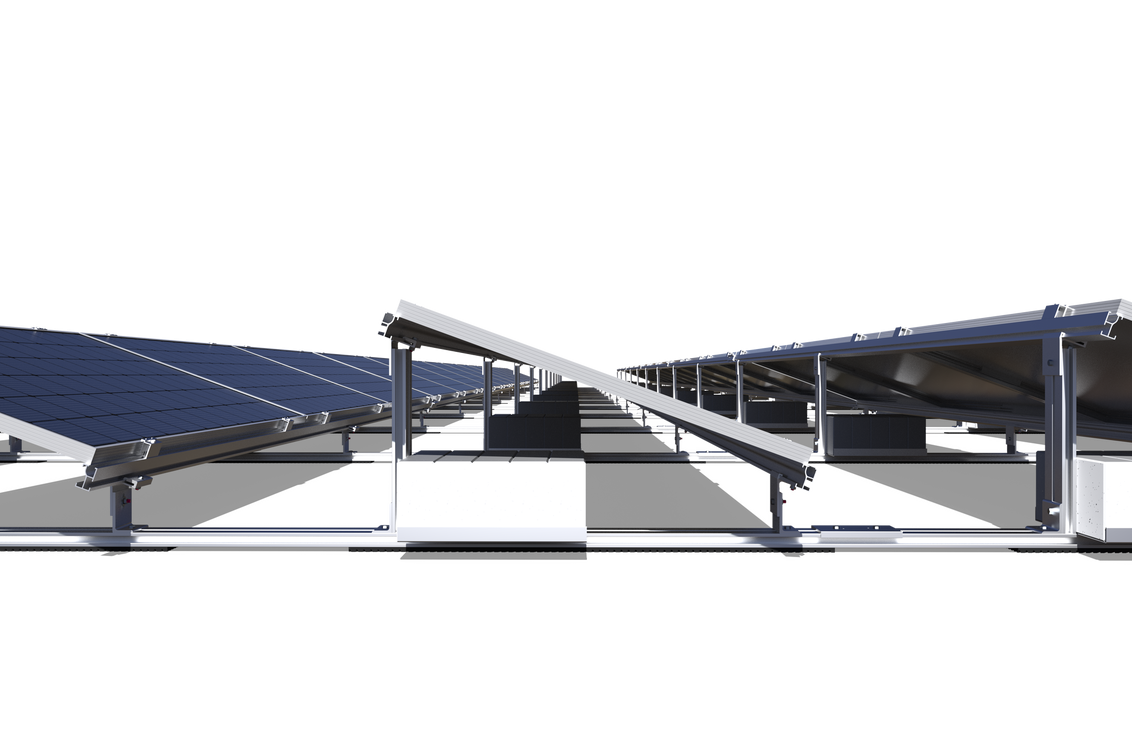

Freedom of design

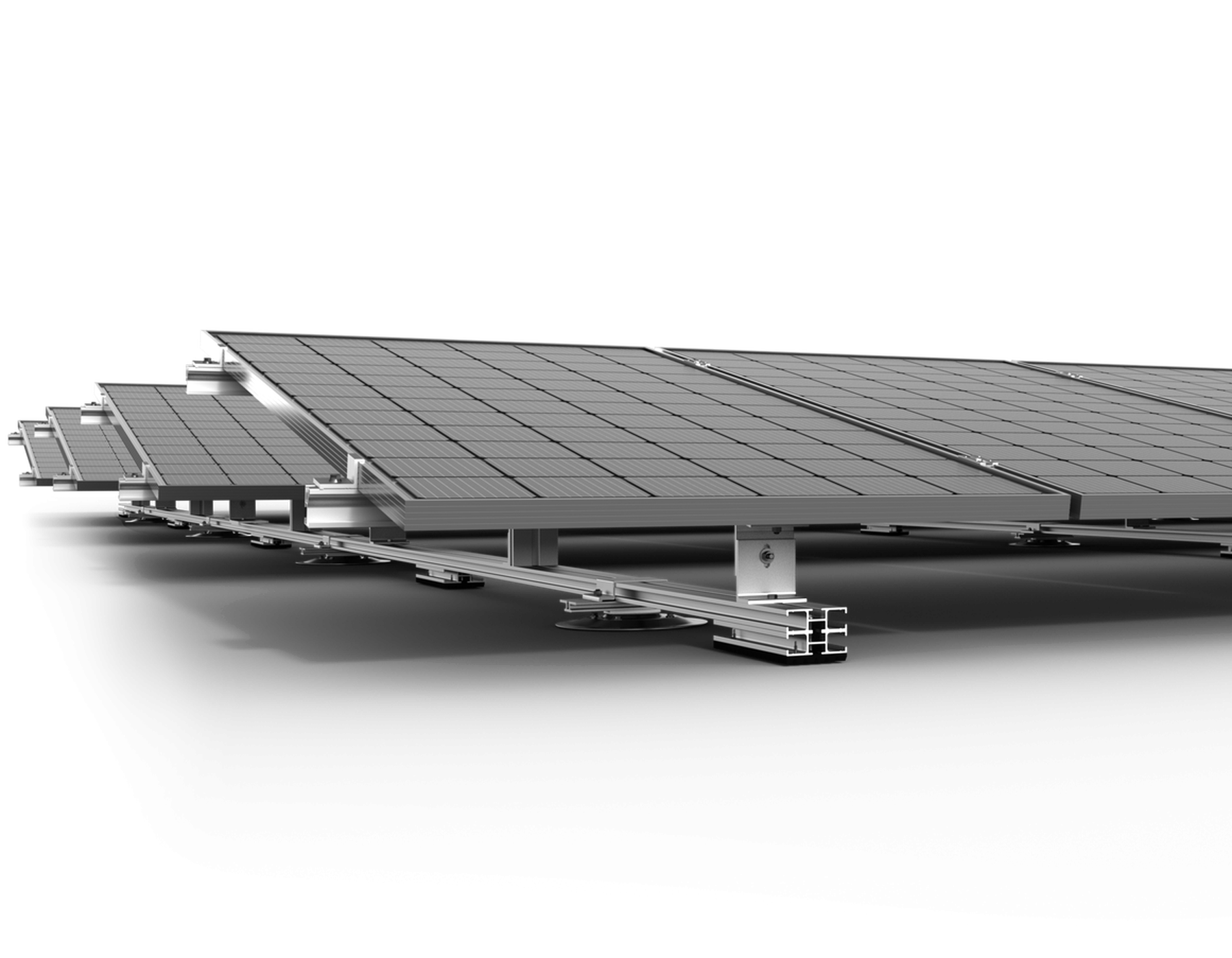

Opsun SunRail ™ is a versatile platform, not a fixed product : we can design a rack at any tilt, any height, any interrow distance, with any PV module, framed or frameless, landscape or portrait. Open design allows for easy roof acces for maintenance, and lower PV operating temperatures.

High Tilt, High Elevation possible

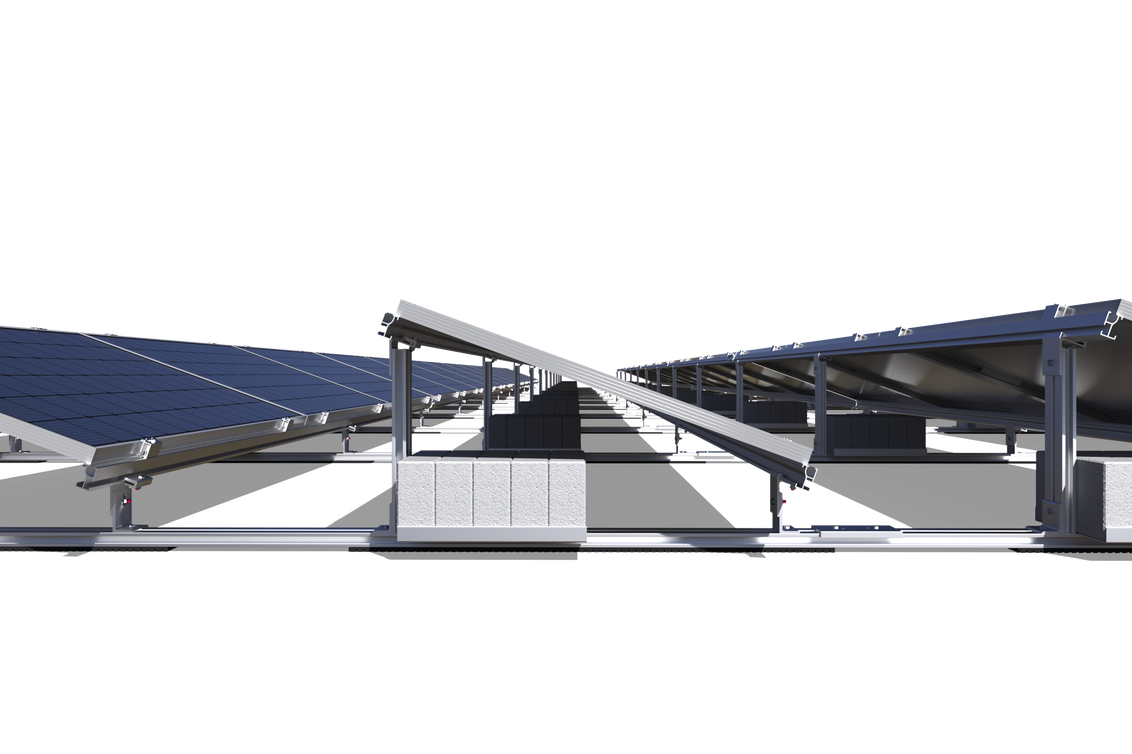

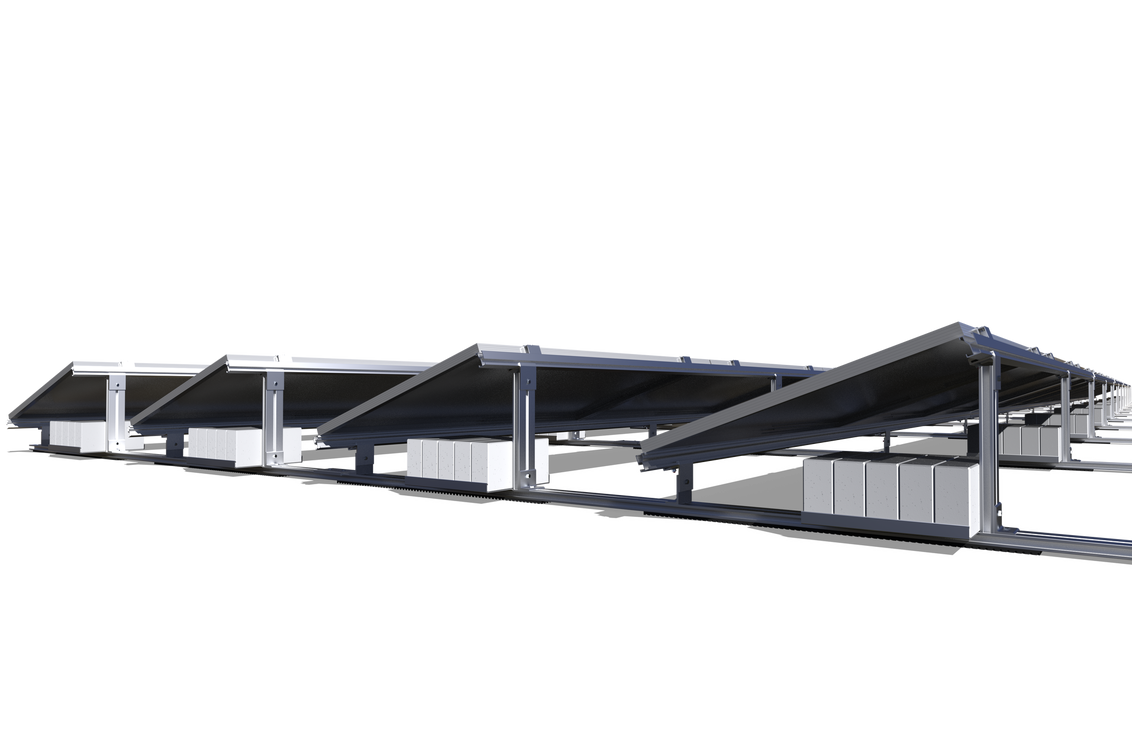

Opsun SunRail ™ is one of the rare product to allow tilts up to 30 degrees and elevation from roof up to 24" (610mm) at the front in almost any location on the planet. Open design without wind deflector allows for easy roof acces for maintenance, and lower PV operating temperatures.

Complete turn-key engineering services

Our experts will support your project, offer advices, help optimize layout, tilt angle and panels elevation from roof. We can find solutions to most construction challenges, and design custom solution for almost any building, of any shape and height.

Advantages

Great for High Rise Buildings

Our fully structural racks can be completely anchored on tall buildings, for maximum safety and durability.

Fewer ballasts and anchors per PV

The solidity of our racks help distribute the wind loads on larger surfaces, thus reducing the number of ballasts or anchors required. For anchored proejcts, we typically will requires less than 1 anchor per 2-3 PVs.

Better Panel Protection

Strong rails supporting PVs on their full length help prevent torsion and movement that leads to accelerated degradation of PV panels

Perfectly Safe for the roof

Racking system comes with grooved 4ft rubber pads that allow water flow, and reduces points loads, due to continuous North-South rails. Recycled rubber pads protect the roof without sacrificial membrane.

Full Aluminum Design

Rail-based design with 6000 series aluminum and 306 stainless steel bolts and nuts guarantee maximum durability of the structure for decades.

UL 2703

ETL listed (#5013658) to UL 2703, for all configurations except 5 deg. Tilt. Fire tested to class "A".

Fully Adjustable System On-Site

All components can be slid in the rails' channels, to adjust for roof unevenness. System will follow roof's drains, crikets and tapered insulation with ease.

Typical Overall Racking Installation Speed (including PV panels' DC connection)

4000+ W/ man-hour (preassembled), 1700-2000 W/man-hour (unassembled)

Highest Standard for Engineering & Support

Our engineers use only the safest methods of calculation, to assure maximum solidity and durability of the structures. We have proprietary, recent wind tunnel tests with Western University, and we design using the latest Building Codes (ASCE-7-16, NBCC 2016, IBC 2018), as well as SEAOC PV2 notions of array size versus roof size to account for extraordinary vortices. Minimal deflection allowed on rails, and finite element analysis done with high-end 3D engineering software. Each zone ballast & anchors calculated individually. We find solutions to each unique challenge, and we react quickly if unforeseen events happen during construction (such as unmarked drains, roof equipments obstruction and last minute changes).

Project-Specific Building Permit Plans & P.Eng stamp with each project

Custom, project-specific building permit plans, stamped by a local P. Eng., are provided for each job, describing step-by-step where each component goes, on the exact project site, with markups, details and explanations custom to each project's specific difficulties.
