20 years warranty Made in North-America

Sunground

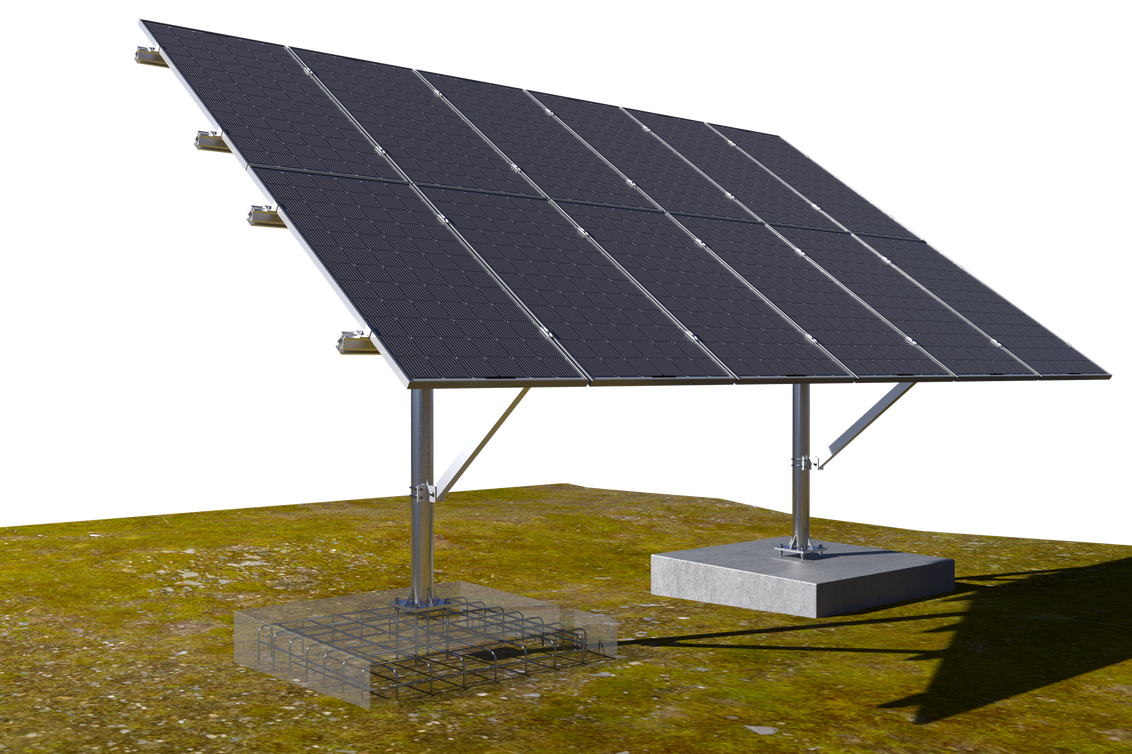

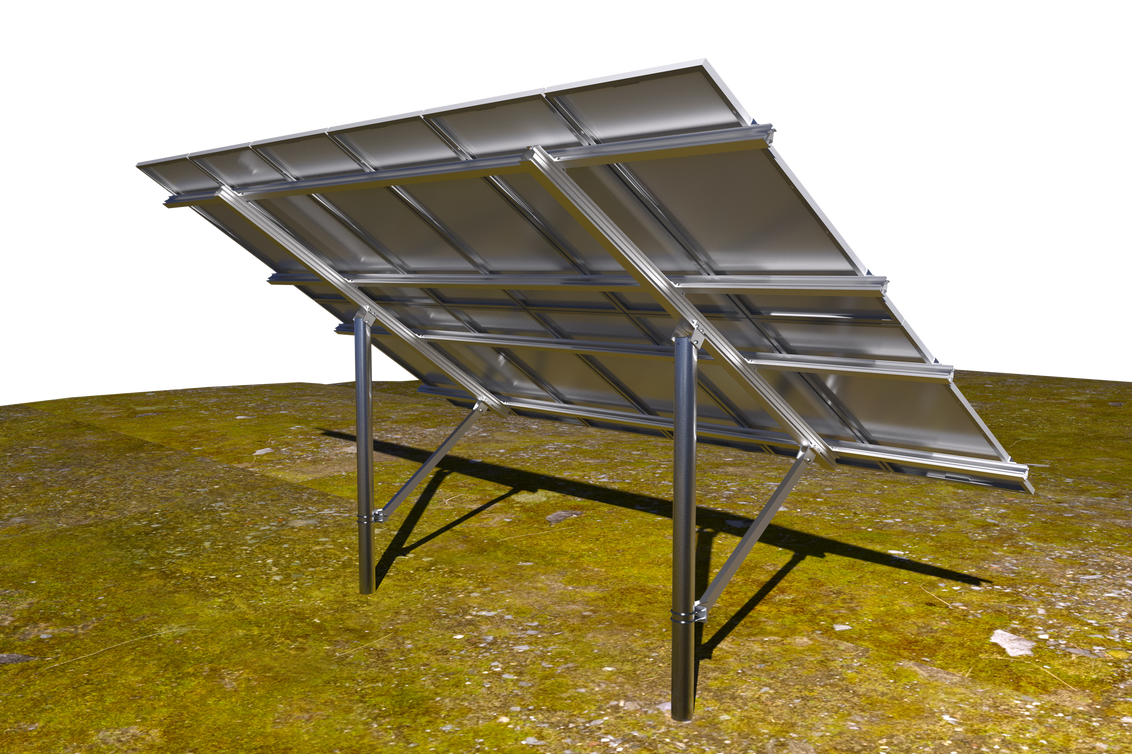

SunGround, a universal Ground Mount PV Racking System

IntertekCe

Key specifications

Material

Aluminum rails and components, stainless steel bolts & nuts

Max Snow Loads

Can be designed for any snow loads (up to over 100 PSF)

Max Wind Loads

Can be designed for any wind loads (up to 180MPH)

Tilt Angle

0 to 90D (typical 30-55 deg.)

PV Panel Orientation

Landscape or Portrait

Module

Any framed PV, any frameless PV

Foundation Type

Any (helical piles typical, can be designed on concrete footings or driven piles of any shape)

PV Panel height from ground

Customizable, typically 36 inches

Variable Tilt

Possible (up to 3 positions, manually changed for seasonal adjustment)

Grounding

Self-bonding PV clamps, UL 2703 listed

Freedom of design

Our experts can create any groundmount design as per your requirements : any number of panels high and across, portrait or landscape, at any tilt. Typical commercial applications are two (2) 72 cells PVs vertically (portrait), and as many across as needed to match PV string length.

Unique Aluminum racking solution

The SunGroundtm system is entirely made of aluminum and stainless bolts. Ideal for coastal regions where salt air would damage even galvanized steel over time. Can easily be engineered for hurricane or extreme snow regions. Aluminum resists better to temperature changes, and is much faster to install than equivalent steel racking.

Complete turn-key engineering services

Our team of experts can design ground-mounted structures for any kind of soil, on any kind of foundation, including ballasted ground-mounted structure (not recommended where soil freezes). Our experts will support your team by providing recommendations on tilt, orientation and layout.

Advantages

Fast installation with light components

No crane or heavy lifting equipment necessary, all rails can be mounted by hand. On-site adjustments possible using rails' channels. Faster installation than most steel-based systems.

Fewer Posts per Structure

Our team of expert optimize each system to minimize the number of foundations required. Up to eight (8) 72 cells panels per foundation.

Better Panel Protection

Strong rails supporting PVs on their full length help prevent torsion and movement that leads to accelerated degradation of PV panels

Full Aluminum Design

Rail-based design with 6000 series aluminum and 306 stainless steel bolts and nuts guarantee maximum durability of the structure for decades. Great for coastal regions.

UL 2703

ETL Listed for all configurations.

Fully Adjustable System On-Site

All components can be slid in the rails' channels, to adjust for roof unevenness. Up to 2" in all direction of adjustment if foundation (posts) are not perfectly strait or improperly positionned.

Typical Overall Racking Installation Speed (including PV panels' DC connection)

5000 + W/ man . Hour (preassembled), 2000 + W/man . Hour (unassembled). Depends on configurations.

Highest Standard for Engineering & Support

Our engineers use only the safest methods of calculation, to assure maximum solidity and durability of the structures. We have proprietary, recent wind tunnel tests with Western University, and we design using the latest Building Codes (ASCE-7-16, NBCC 2016, IBC 2018), as well as SEAOC PV2. Minimal deflection allowed on rails, and finite element analysis done with high-end 3D engineering software. Each component and vertical structure calculated individually. We find solutions to each unique challenge, and we react quickly if unforeseen events happen during construction (such as terrain obstructions and last minute changes).

Project-Specific Building Permit Plans & P.Eng stamp with each project

Custom, project-specific building permit plans, stamped by a local P. Eng., are provided for each job, describing step-by-step where each component goes, on the exact project site, with markups, details and explanations custom to each project's specific difficulties.

Documents & Specifications

OPSUN Total Engineeringtm Support

Opsun specilizes in racking engineering for any type of solar project, discover below our unique process to assure the best quality racking and engineering is supplied for all your PV, and bifacial PV projects.

Flexible Design

Opsun's racking is not a single product : it is instead a large library of rails, components and configurations that we can adapt to match any client's requirements.

Tell me more

Full engineering Support

Opsun experts takes care of all the mechanical aspects of the project and we deliver detailed, project-specific set of engineering plans to help accelerate installation time.

Tell me more

Technical Solutions

Opsun is your solution finder to a wide array of challenges, such as limited roof capacity, directly attached or hybrid (both ballasted & anchored) systems.

Tell me more

Installation Support

Opsun On-Site Support allows your installation team to benefit from the instructions and supervision of an expert from Opsun's team, with 15 years of experience.

Tell me more
